— PLT-FMT

The FMT access control system from Magnetic was designed for precisely these applications. With its extremely slender design, its curved lines, and its unusual illumination at the base and on the frame edges it is ideal for integration in sophisticated architectures whilst, at the same time, the material makes a unique impression on first contact. Instead of cold and hard like stainless steel, feels soft and comfortable, emphasising the open character of the new generation of products.

DESCRIPTION

Companies, cultural institutions and public facilities increasingly want to systematically register the presence of employees and visitors in order to automate certain processes and increase the security of their premises. Whereby the design of the access control system plays a central role in more sophisticated work and experience environments. As one of the first stations on the way into the building it should underline the architectural aspiration and provide those entering with a friendly reception.

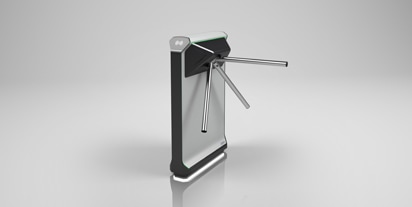

The FMT access control system from Magnetic was designed for precisely these applications. With its extremely slender design, its curved lines, and its unusual illumination at the base and on the frame edges it is ideal for integration in sophisticated architectures whilst, at the same time, the material makes a unique impression on first contact. Instead of cold and hard like stainless steel, feels soft and comfortable, emphasising the open character of the new generation of products.

Standards, however, are also set beneath the smart outer skin. With its intuitive control system, extraordinary range of functions, and future-oriented connections, the FMT redefines access control systems.

SPECS

Technical data

mTripod

mTripod short

Housing variants

Long

Short

Application

Indoor and outdoor

Indoor and outdoor

Passage width

515 mm

515 mm

Drive technology

MHTM™

MHTM™

Control system

MGC

MGC

Voltage

85–265 VAC, 50/60 Hz

85–265 VAC, 50/60 Hz

Power consumption

Typical 30 W

Typical 30 W

Duty cycle

100 %

100 %

Housing material

mDure

mDure

Housing dimensions (L x W x H)

1300 x 290 x 1050 mm

730 x 290 x 1050 mm

Enclosure rating

IP 54

IP 54

Weight

About 70 kg

About 57 kg

Temperature range

−30 to +55 °C

−30 to +55 °C

Equipment

mTripod

Standard colour

Basalt (sides)
Anthracite (frame)

Direction of passage

Freely selectable

Emergency release

On power outage or closing of alarm contacts

Random generator

Integrated in control system

Throughput data acquisition and event log

Integrated in control system
